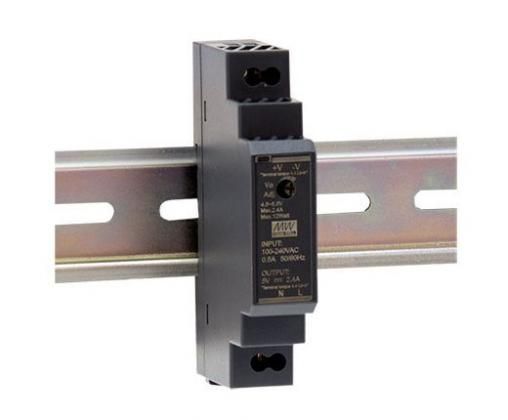

Mean Well HDR-15-5 is an ultra-slim 15W DIN rail power supply providing a stable 5V DC output. With a compact width of only 17.5mm (1SU), it is ideal for installations where space inside control cabinets is limited.

The unit supports a universal 85–264VAC input (277VAC operational) and provides efficiency up to 80%. Cooling is achieved by free air convection, ensuring silent operation and high reliability.

Key Specifications:

• Output voltage: 5V DC

• Rated current: 2.4A

• Rated power: 12W

• Adjustable output range: 4.5–5.5V

• Ripple & noise: 80mVp-p

• Isolation class: II

• LPS (Limited Power Source)

Protections

• Short circuit protection

• Overload protection (110–145%, auto recovery)

• Over voltage protection 5.75–6.75V

Environmental Conditions

• Operating temperature: -30°C to +70°C

• Humidity: 20–90% RH non-condensing

• Mounting: DIN rail TS-35/7.5 or TS-35/15

• Dimensions: 17.5 × 90 × 54.5 mm

• Weight: 74 g

• Warranty: 3 years

Ingress protection: IP20

Applications

• building automation

• industrial control systems

• household automation

• control cabinets

• electro-mechanical equipment
