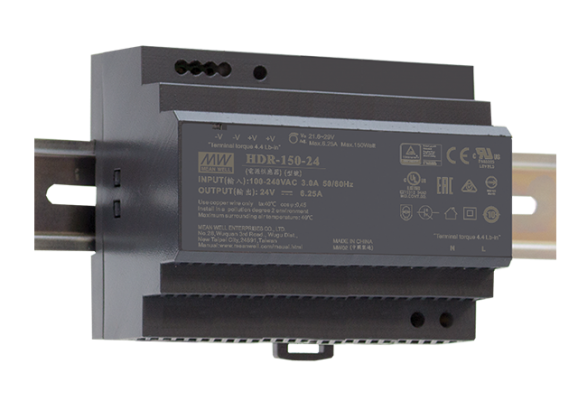

Mean Well HDR-150-24 is an ultra-slim 150W DIN rail power supply delivering a regulated 24V DC output. With a 105mm (6SU) compact width, it is suitable for control cabinets and automation systems requiring space-efficient installation.

It features a universal 85–264VAC input (277VAC operational) and high efficiency up to 90.5%. Cooling is achieved by free air convection. Operating temperature range: -30°C to +70°C.

Key Specifications:

• Output voltage: 24V DC

• Rated current:

  • 5.31A @115VAC

  • 6.25A @230VAC

• Rated power: up to 150W

• Adjustable output range: 21.6–29V

• Ripple & noise: 150mVp-p

• Isolation class II

Protections:

• Short circuit protection

• Overload protection (105–135%, hiccup mode, auto recovery)

• Over voltage protection: 30–36V

• Over voltage category III

Power-on LED indicator included.

Ingress Protection: IP20
DIN rail mounting: TS-35/7.5 or TS-35/15
3-year warranty

Applications: building automation, industrial control systems, factory automation, electro-mechanical equipment.
