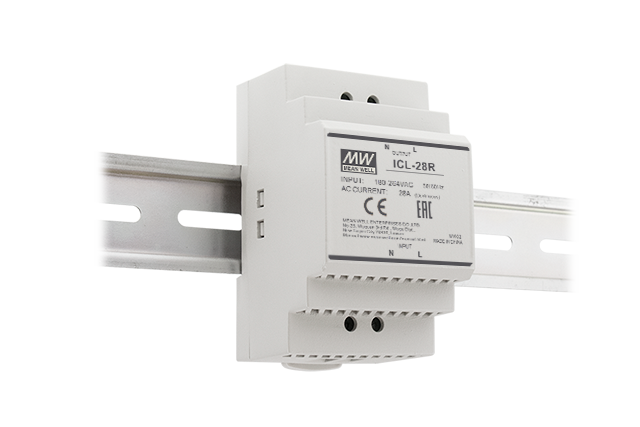

Mean Well ICL-28R is an AC inrush current limiter designed to reduce high startup currents generated by switching power supplies, LED drivers, and other capacitive loads. It helps prevent nuisance tripping of circuit breakers when multiple power supplies are switched on simultaneously.

The ICL-28R is designed for DIN rail mounting and allows multiple power supplies to be connected to the same AC line. An integrated bypass relay minimizes power loss after the startup phase and ensures stable operation.

Key Specifications

• Operating voltage: 180–264VAC

• Frequency: 47–63Hz

• Continuous rated current: 28A

• Inrush current limiting: 48A

• Maximum load: up to 6440VA

• Allowed capacitive load: up to 6000µF

• Power consumption: <2W

Mechanical & Environmental

• Mounting: DIN rail TS-35/7.5 or TS-35/15

• Ingress protection: IP20

• Operating temperature: -30°C to +70°C

• Operating altitude: up to 5000m

• Dimensions: 52.5 × 90 × 54.5 mm

Protections

• Built-in thermal fuse

• Overload protection

• Relay bypass circuit

Applications

• multi power supply systems

• LED lighting installations

• industrial automation

• control cabinets

• telecom equipment

Warranty: 3 years
