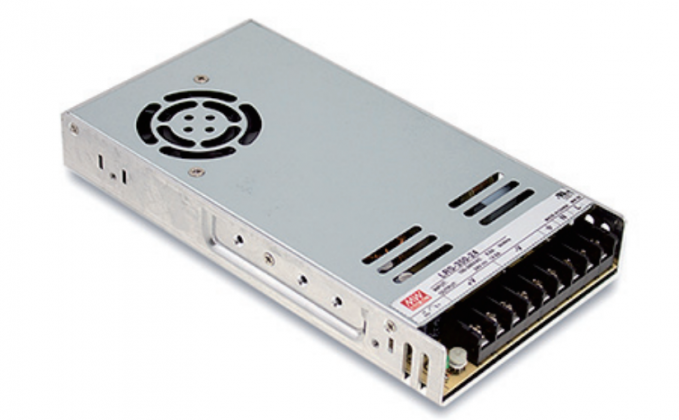

LRS-350-5 — 300W / 5V Single Output Switching Power Supply

The LRS-350-5 is a compact enclosed 300W switching power supply delivering 5V DC at up to 60A. With a slim 30mm low-profile design, it is ideal for industrial control systems, automation and electronic equipment.

Key Specifications

• Output voltage: 5V DC

• Rated current: 60A

• Output power: 300W

• Voltage adjustment: 4.5–5.5V

• Efficiency: up to 83.5%

• Ripple & noise: 150mVp-p

• Input range: 90–132 / 180–264VAC (selectable)

• No-load power consumption <0.75W

Protection Features

• Short circuit protection (hiccup mode)

• Overload protection (110–140%)

• Over voltage protection

• Over temperature protection

• 300VAC surge withstand for 5 seconds

Mechanical & Environmental

• Operating temperature: -25°C to +70°C

• 5G vibration resistance

• Built-in DC fan with ON/OFF control

• Dimensions: 215 × 115 × 30 mm

• Weight: 0.76 kg

• 3-year warranty
