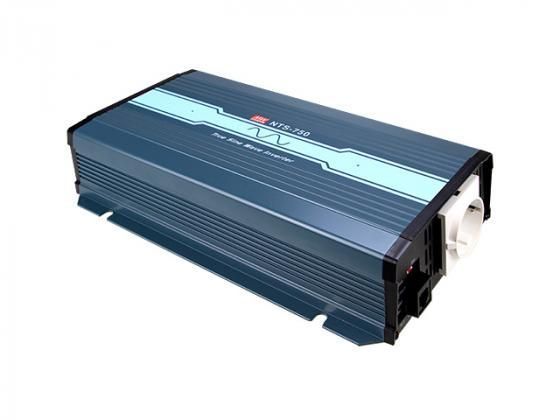

NTS-750-212EU — 750W High Reliable True Sine Wave DC-AC Power Inverter (12V → 230VAC, EU)

The NTS-750-212EU is a 750W highly reliable off-grid true sine wave inverter (THD <3%) designed to convert 12V DC into stable 230VAC output.

The EU version features a European AC socket and supports selectable output voltage and frequency via DIP switch.

Key Specifications

• Input voltage: 12V DC (10–16.5V)

• Output voltage: 200/220/230/240VAC selectable

• Frequency: 50/60Hz selectable

• Rated power: 750W

• 3 min over power: 862W

• 10 sec peak power: 1125W

• 30 cycle surge: 1500W

• Efficiency: up to 90%

• Waveform: True sine wave (THD <3%)

• Operating temperature: -25°C to +70°C

• Dimensions: 270 × 158 × 67 mm

• IP20

• 3-year warranty

Protection Features

DC Input:

• Reverse polarity protection (internal fuse)

• DC low alarm

• DC low shutdown

• Over voltage protection

AC Output:

• Short circuit protection

• Overload protection

• Over temperature protection

• Battery low voltage disconnect
