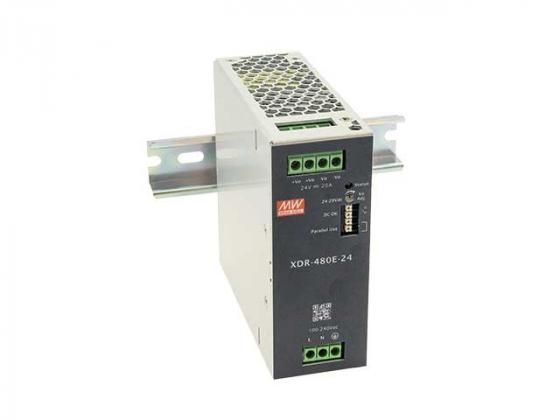

Mean Well XDR-480E-24 DIN Rail Power Supply, 480W, 24V, 20A

The Mean Well XDR-480E-24 is a 480 W AC/DC industrial DIN rail power supply designed for industrial automation and control systems. Its slim 48 mm housing optimizes installation space in control cabinets.

The unit supports a wide 85–264 VAC input range with active PFC and provides high efficiency up to 95.5 %. The fanless design ensures reliable and silent operation with cooling by natural convection.

The power supply supports parallel operation of up to 4 units, enabling a total system power of up to 1920 W. A built-in DC OK relay contact allows remote monitoring of the power status.

Key features:

• Output voltage: 24 V

• Output current: up to 20 A

• Output power: up to 480 W

• Input voltage range: 85–264 VAC

• Output voltage adjustment: 24–29 V

• Efficiency: up to 95.5 %

• No-load power consumption: <1.2 W

• Protections: short circuit, overload, over voltage, over temperature

• Built-in constant current limiting circuit

• Parallel operation up to 4 units (up to 1920 W)

• Fanless cooling by natural convection

• Built-in DC OK relay contact

• DIN rail mounting TS-35/7.5 or TS-35/15

• Operating temperature: −40…+70 °C

• Dimensions: 48 × 125.2 × 125 mm

• 3-year warranty

Applications:

• industrial control systems

• semiconductor manufacturing equipment

• factory automation

• electro-mechanical equipment

• battery chargers
