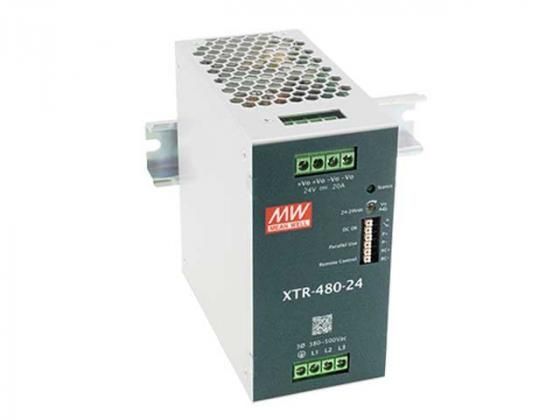

XTR-480-24 is a 480 W ultra-slim three-phase DIN-rail power supply (24 V, 20 A) from Mean Well designed for industrial automation and control systems. The unit supports a wide three-phase input range of 320–600 VAC and features a compact 63 mm wide housing, allowing efficient installation in control cabinets.

The power supply provides high efficiency up to 94% and very low no-load power consumption (<3 W). It also supports 200% peak power capability, making it suitable for loads with high startup current.

The unit includes comprehensive protection functions such as short circuit, overload, over-voltage and over-temperature protection. It also features a DC OK relay contact and Remote ON/OFF control for monitoring and external power management. Fanless cooling by natural convection ensures reliable and silent operation. The operating temperature range is -40 to +85 °C.

With global safety certifications and high reliability, the XTR-480-24 is suitable for industrial control systems, semiconductor fabrication equipment, factory automation and electro-mechanical applications.

Key specifications:

• output voltage: 24 V DC

• rated current: 20 A

• rated power: 480 W

• peak power: up to 960 W (5 s)

• input: 3-phase 320–600 VAC

• efficiency: up to 94%

• mounting: DIN rail TS-35

• width: 63 mm

• operating temperature: -40…+85 °C

• warranty: 5 years
