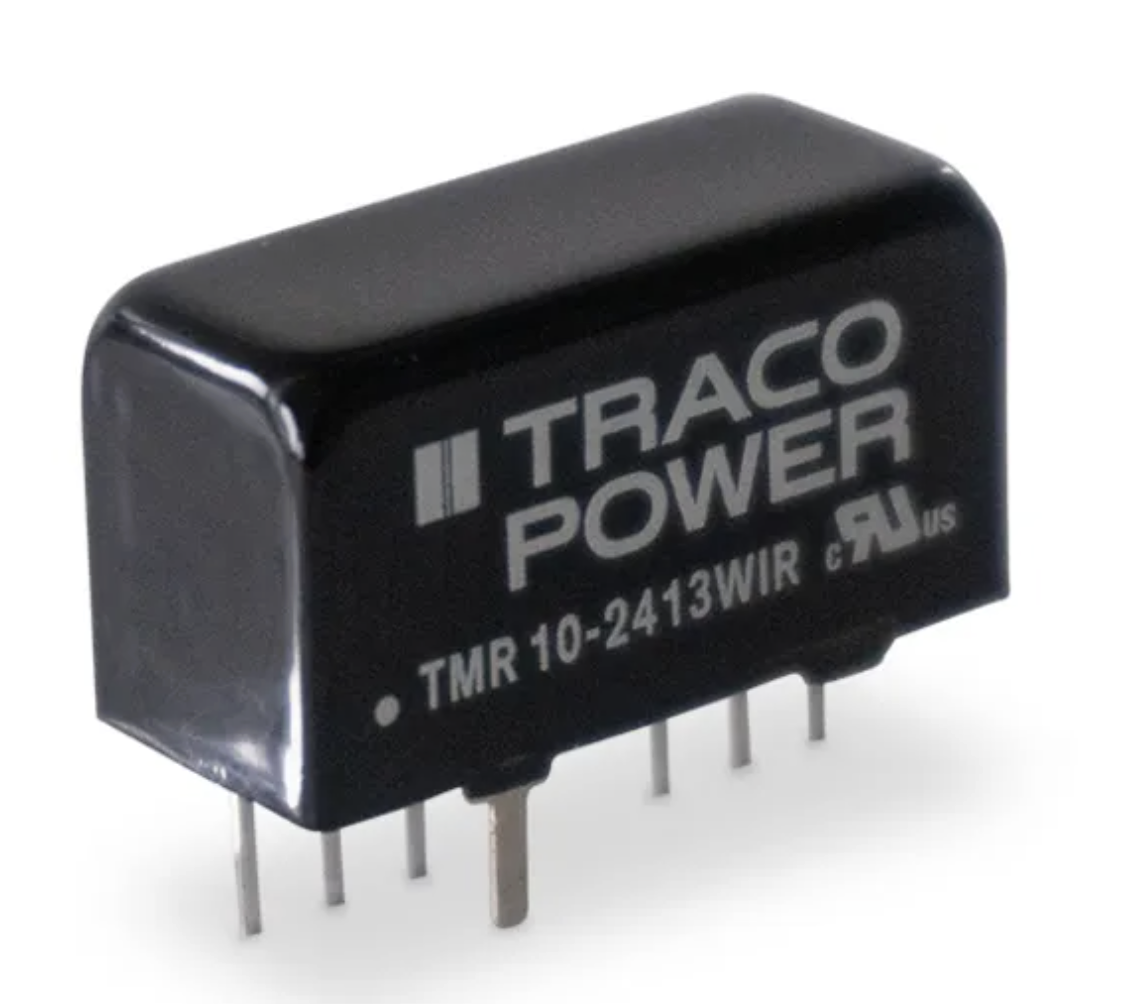

The TMR 10WIR series is a line of rugged 10W DC/DC converters designed for maximum reliability in harsh operating conditions. The converters feature a wide 4:1 input voltage range and increased immunity to electromagnetic interference, shock, vibration, and thermal shock. All this is implemented in a compact metal SIP-8 form factor package.

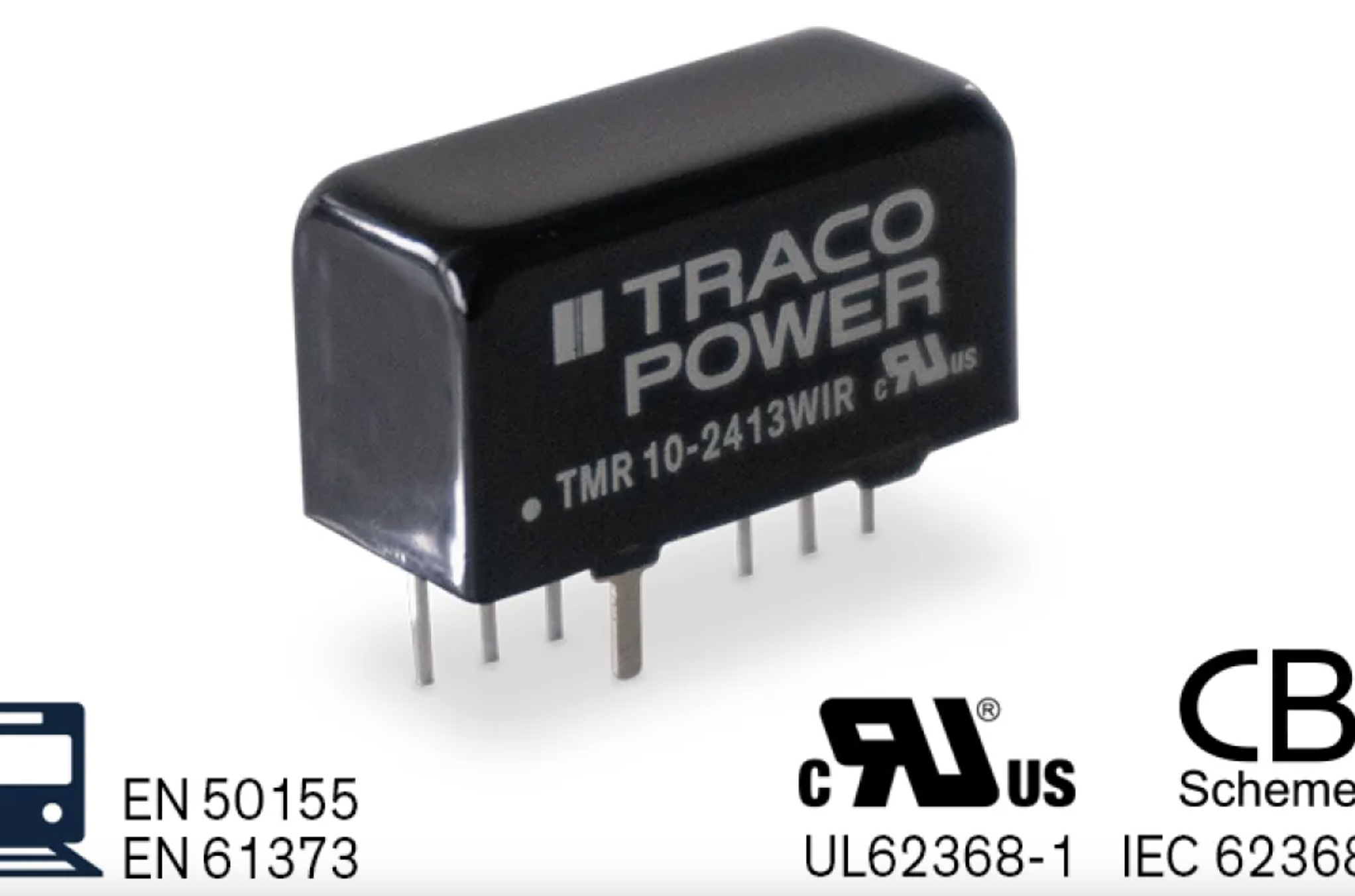

The innovative design provides high efficiency up to 89%, allowing the device to be operated in the temperature range from -40 to +75°C without reducing the output power. Compliance with EN 50155 and EN 61373 standards makes these power supplies suitable for use in railway and transportation systems. Additional certification for fire safety according to EN 45545-2 and safety according to IEC/EN 62368-1, UL62368-1 facilitates the application certification.

Integrated features such as undervoltage lockout (UVLO), short-circuit protection, and remote power management make this series a versatile solution for a wide range of applications and greatly simplify the integration process.

10-watt DC/DC converter for railway applications with a wide input voltage range of 4:1

  • Compact metal housing SIP-8
  • Compliance with EN 50155 and EN 61373 standards for railway applications
  • Fire safety qualification according to EN 45545-2
  • Wide input range 4:1: 9–36, 18–75, 36–160 VDC
  • Operating temperature range from –40°C to +75°C without derating
  • Galvanic isolation input/output 3'000 VDC
  • High efficiency up to 89%
  • Overload and short circuit protection
  • Remote On/Off function
  • 3 years warranty

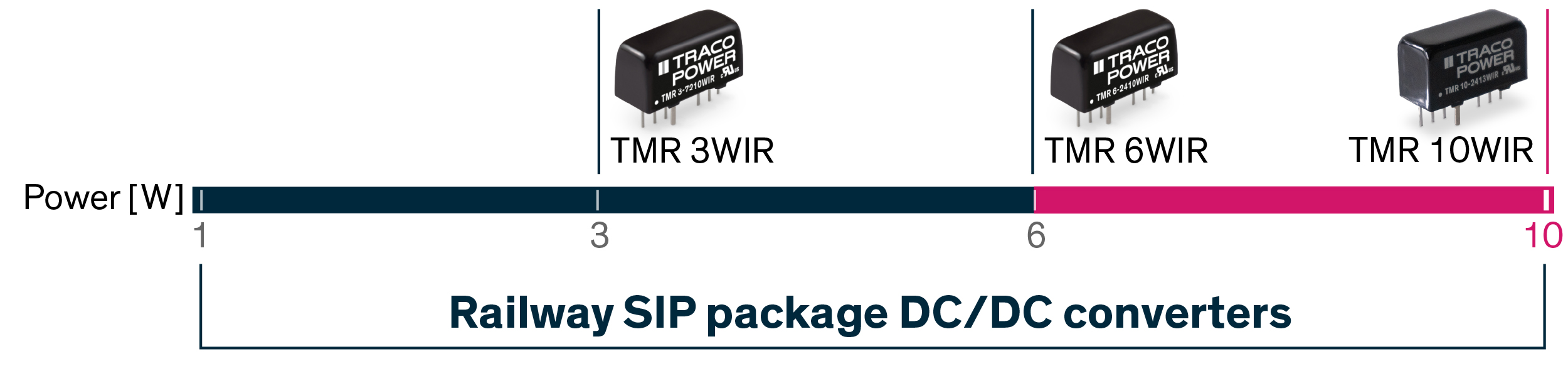

  Series Power Input voltage Output voltage Package

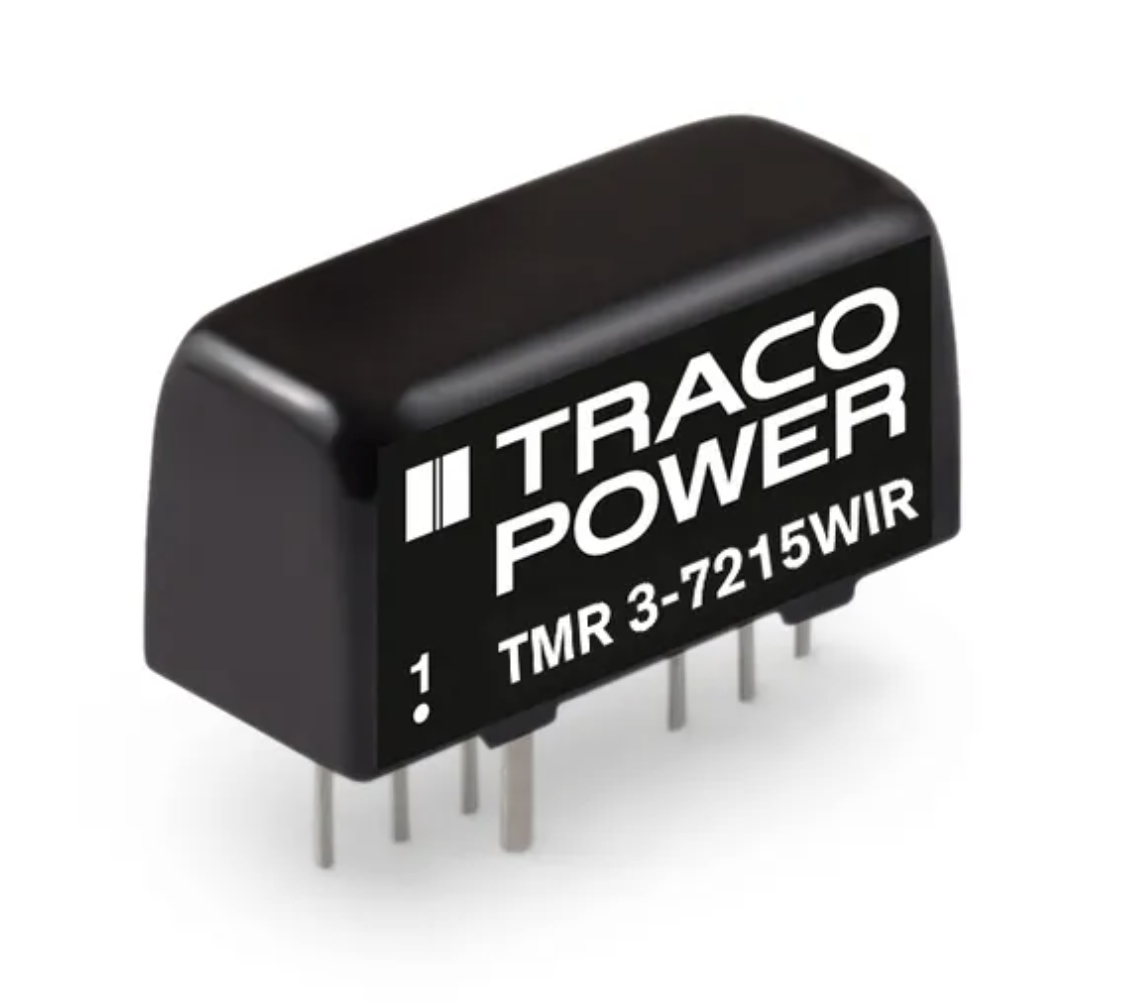

TMR 3WIR 3 W 9–36, 18–75, 43–160 VDC 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 VDC SIP-8

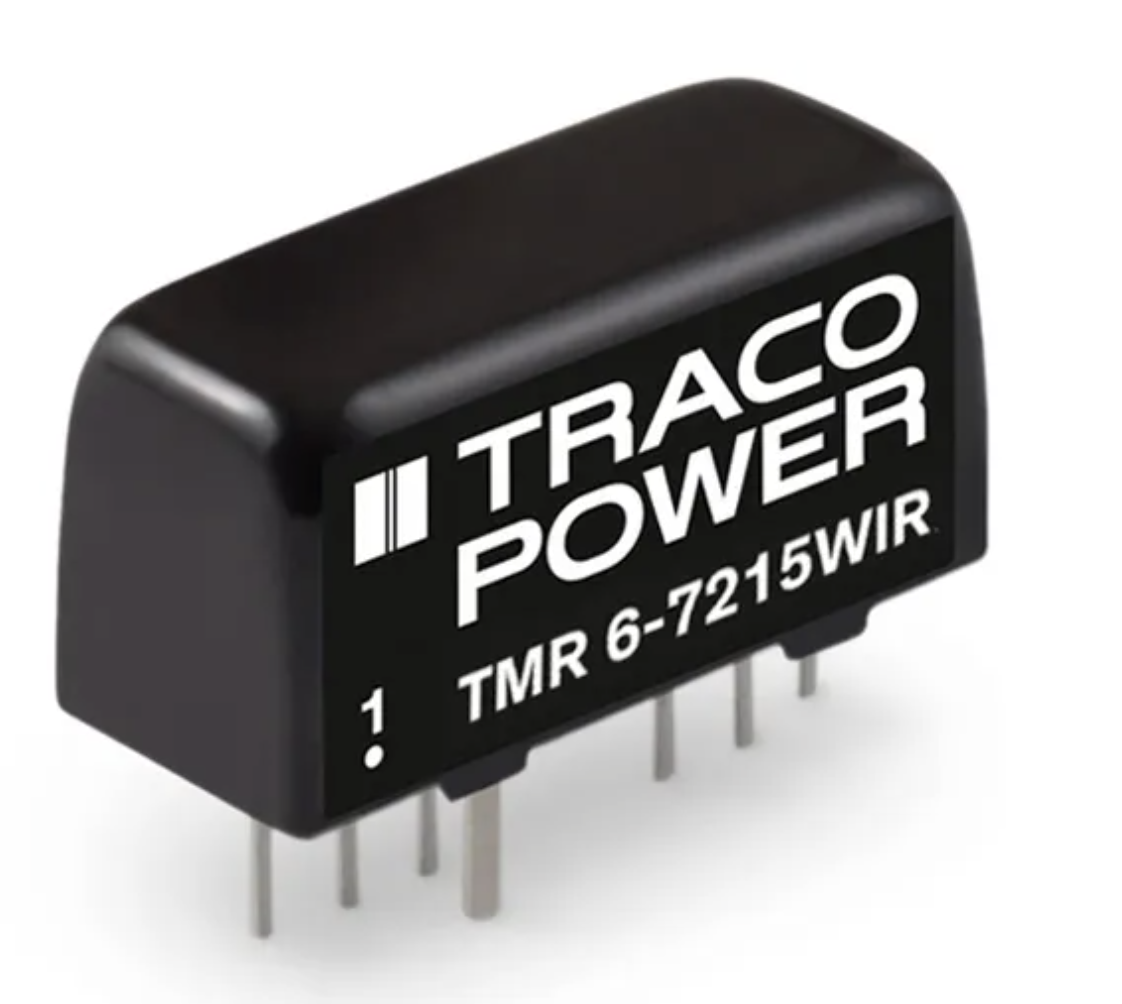

TMR 6WIR 6 W 9–36, 18–75, 43–160 VDC 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 VDC SIP-8
TMR 10WIR - NEW 10 W 9–36, 18–75, 43–160 VDC 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 VDC SIP-8
