The XDR-E series (75-960W), launched in April 2025, quickly gained wide recognition in the market due to its excellent price-performance ratio and wide model range. Shortly after its launch, the series received a significant number of orders, confirming its high competitiveness. Today, these power supplies are widely used in industrial automation, energy infrastructure, renewable energy equipment, network switches and semiconductor manufacturing equipment.

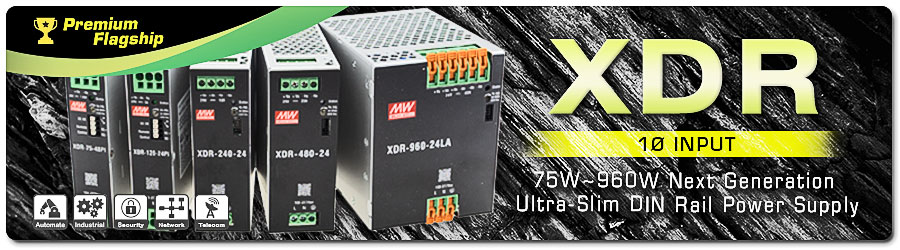

To meet the needs of applications with increased performance requirements and harsh environments, MEAN WELL has introduced the premium flagship XDR series (75-960W). With the launch of this line, along with the XDR-E series, the manufacturer now offers two product levels - premium and cost-optimized, providing the market with a wider and more diverse choice of power solutions.

Compared to previous generations of SDR/NDR/EDR, which have been on the market for over 10 years, the new XDR/XDR-E series offer:

  • more compact dimensions,
  • wider model range,
  • improved technical characteristics,
  • more security certifications,
  • longer warranty period.

Overall, the new generation demonstrates significant improvements over the previous series (see comparison table for details). XDR / XDR-E power supplies can directly replace previous models. Customers can choose between the flagship XDR series or the cost-effective XDR-E series depending on their performance requirements and application conditions, achieving high efficiency, optimal cost and increasing the competitiveness of their systems.

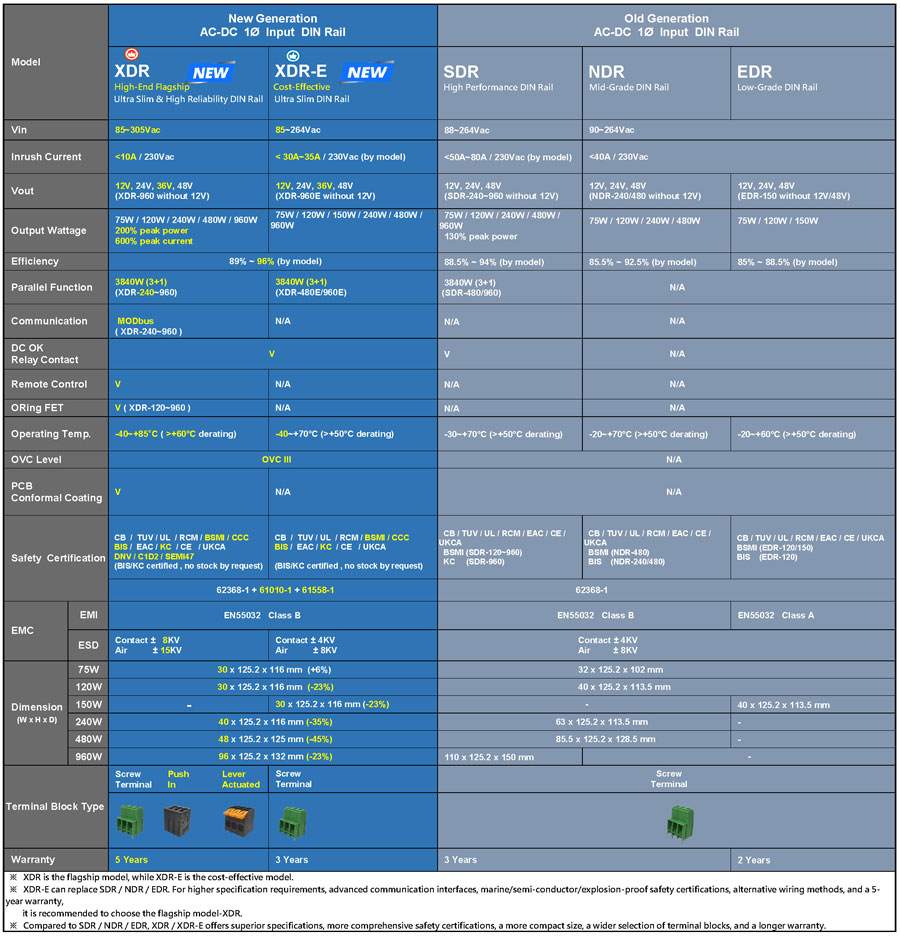

For a detailed comparison of the characteristics of the new and previous generations, refer to the table below:

Main characteristics:

  • Ultra-wide input voltage range of 85–305 Vac, suitable for global use
  • Ultra-slim body with a width of 30–96 mm (depending on model)
  • High efficiency 89–96%, low power loss <0.7–1.5 W (depending on model)
  • Ultra-low starting current <10 A (at 230 Vac input)
  • Peak power up to 200% and pulse peak current up to 600%
  • MODBus RTU protocol support (XDR-240–960 models)
  • Supports parallel connection to increase output power (XDR-240–960)
  • Operating temperature range –40…+85°C (above +60°C — with load reduction)
  • Protections: short circuit / overload / overvoltage / overheating
  • Built-in functions DC OK, remote ON/OFF, OR-ing FET (XDR-120–960)
  • Overvoltage category OVC III
  • Working at altitudes up to 5000 m
  • Full range of output voltages: 12V (except 960W model), 24V, 36V, 48V
  • Output voltage regulation:
    12 V: 12–15 V
    24 V: 24–29 V
    36 V: 36–42 V
    48 V: 48–55 V
  • Certification according to international standards: CB / TUV / UL / RCM / BSMI / CCC / EAC / BIS / KC / CE / UKCA, as well as compliance with 62368-1 / 61010-1 / 61558-1, C1D2 HazLoc, Marine DNV, SEMI F47 certifications
  • Various mounting terminal options
  • PCB with conformal coating, resistant to high humidity and extreme conditions
  • 5 year warranty

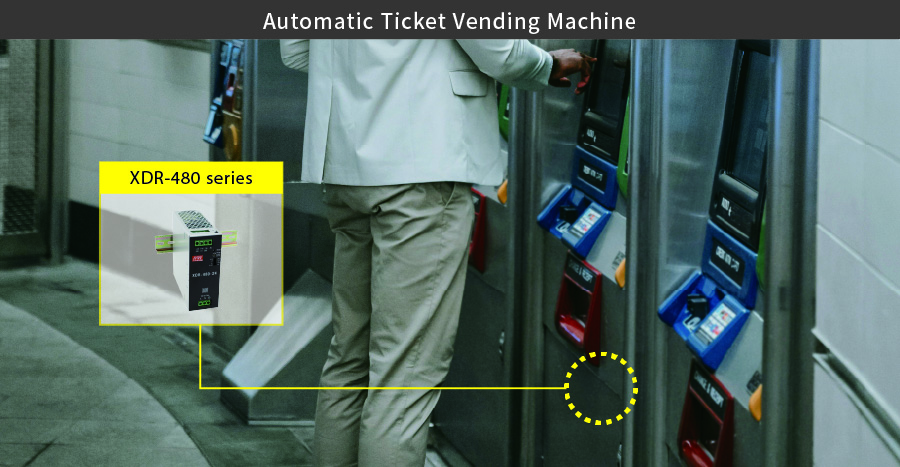

Example of use:

Model coding:

Based on materials from meanwell.com
