SEA Company is the official distributor of MEAN WELL in Ukraine.

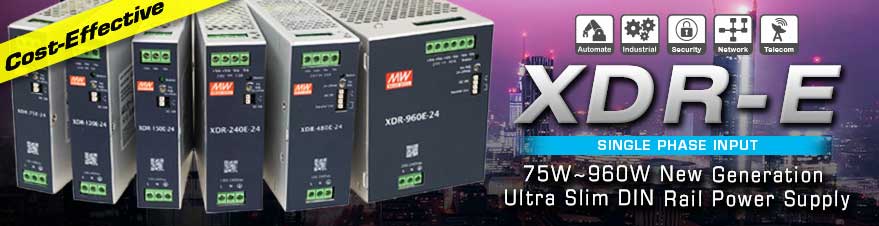

MEAN WELL is expanding its range of industrial power supplies with the introduction of a powerful new product, the XDR-E series, which launched in April 2025. It will replace the popular SDR/NDR/EDR solutions, which have been successfully used for over a decade in industrial automation, energy, renewable energy systems, telecom, and lighting. Nearly 100 million of these products have been sold worldwide, demonstrating the brand's customer trust.
Key benefits of the new generation:
- Reduced dimensions – power supplies have become 23–45% more compact, while maintaining the performance of their predecessors.
- A wider range of models:
- power from 75 W to 960 W,
- new models with 12 V (240/480 W) and 36 V, which were not previously in the line. - Energy efficiency up to 96%, reducing heating and cooling costs.
- Stable operation at extreme temperatures: from –40 to +70°C.
- International certification has been expanded for various industries.
Optimal balance of price and capabilities
The XDR-E series combines:
- reliable MEAN WELL quality,
- smaller sizes,
- high technical characteristics,
- a more affordable price, allowing you to reduce the overall costs of the system.
XDR-E is the ideal solution for modern compact control cabinets and energy-efficient industrial applications.
Series included in the XDR-E family:
- MEAN WELL XDR-75E
- MEAN WELL XDR-120E
- MEAN WELL XDR-150E
- MEAN WELL XDR-240E
- MEAN WELL XDR-480E
- MEAN WELL XDR-960E
Below is a comparison table of old and new generations of single-phase DIN rail converters:
| Model | New generations | Old generations | ||||||
| XDR (coming soon) Flagship product, ultra-thin and high-performance |
XDR-E Balance of performance and price |
SDR High Performance |
NDR Mid-Grade |
EDR Low-Grade |
||||
| Input voltage | 85...305 VAC | 85...264 VAC | 88...264 VAC | 90...264 VAC | ||||
| Inrush current | <10A / 230VAC | < 30A...35A / 230 VAC (depending on model) | <50A...80A / 230 VAC (depending on model) | <40A / 230VAC | ||||
| Output voltage | 12В, 24В, 36В, 48В (XDR-960 without 12V model) |
12В, 24В, 36В, 48В (XDR-960E without 12V model) |
12В, 24В, 48В (SDR-240~960 without 12V model) |
12В, 24В, 48В (NDR-240/480 without 12V model) |
12В, 24В, 48В (EDR-150 without 12V/48V models) |
|||
| Nominal power | 75W, 120W, 240W, 480W, 960W peak power 200% peak current 600% |
75W, 120W, 150W, 240W, 480W, 960W | 75W, 120W, 240W, 480W, 960W peak power 130% |
75W, 120W, 240W, 480W | 75W, 120W, 150W | |||
| Efficiency | 89%...96% (depending on the model) | 88.5%...94% (depending on the model) | 85.5%...92.5% (depending on the model) | 85%...88.5% (depending on the model) | ||||
| Possibility of parallel connection | 3840W (3+1) (XDR-240~960) |
3840 W (3+1) (XDR-480E/960E) |
3840 W (3+1) (SDR-480/960) | - | ||||
| Communication protocols | MODbus (XDR-240~960) |
- | - | - | ||||
| DC OK contact | V | V | - | |||||
| Remote control | V (XDR-240~960) | - | - | - | ||||
| ORing FET | V (XDR-120~960) | - | - | - | ||||
| Operating temperature | -40...+85°C (power reduction >+60°C) | -40...+70°C (power reduction >+50°C) | -30...+70°C (power reduction >+50°C) | -20...+70°C (power reduction >+50°C) | -20...+60°C (power reduction >+50°C) | |||
| OVC level | OVC III | - | ||||||
| Conformal coating of printed circuit boards | V | - | - | |||||
| Certificates | CB / TUV / UL / RCM / BSMI / CCC BIS / EAC / KC / CE / UKCA DNV / C1D2 / SEMI47 (BIS/KC certification upon request) |
CB / TUV / UL / RCM / BSMI / CCC BIS / EAC / KC / CE / UKCA (BIS/KC certification upon request) |
CB / TUV / UL / RCM / EAC / CE / UKCA BSMI (SDR-120~960) KC (SDR-960) |
CB / TUV / UL / RCM / EAC / CE / UKCA BSMI (NDR-480) BIS (NDR-240/480) |
CB / TUV / UL / RCM / EAC / CE / UKCA BSMI (EDR-120/150) BIS (EDR-120) |
|||
| 62368-1 + 61010-1 + 61558-1 | 62368-1 | |||||||
| EMC | EMI | EN55032 class B | EN55032 class B | EN55032 Class A | ||||
| ESD | Contact ± 8KV Air ± 15KV |
Contact ± 4KV Air ± 8KV |
Contact ± 4KV Air ± 8KV |
|||||
| Dimensions (L x W x H) |
75 W | 30 x 125.2 x 116 mm (-23%) | 32 x 125.2 x 102 mm | |||||
| 120 W | 30 x 125.2 x 116 mm (-23%) | 40 x 125.2 x 113.5 mm | ||||||
| 150 W | - | 30 x 125.2 x 116 mm (-23%) | - | 40 x 125.2 x 113.5 mm | ||||
| 240 W | 40 x 125.2 x 116 mm (-35%) | 63 x 125.2 x 113.5 mm | - | |||||
| 480 W | 48 x 125.2 x 125 mm (-45%) | 85.5 x 125.2 x 128.5 mm | - | |||||
| 960 W | 96 x 125.2 x 132 mm (-23%) | 110 x 125.2 x 150 mm | - | |||||
| Terminal block type | Screw clamp terminal | "Push In" | Clamp with lever | Screw clamp terminal | Screw clamp terminal | |||
| Guarantee | 5 years | 3 years | 3 years | 2 years | ||||
*XDR is the flagship line, while XDR-E has an ideal price/quality ratio
*The XDR-E is a replacement for the SDR/NDR/EDR. For higher-spec applications requiring communications interfaces, marine/semiconductor/explosion-proof certification, alternative connection methods, or a 5-year warranty, the flagship XDR series is recommended.
*Compared to SDR/NDR/EDR, XDR and XDR-E offer better performance, more comprehensive safety certifications, a more compact size, a wider selection of terminal blocks, and a longer warranty. For new projects, please choose the XDR/XDR-E series.
Key Features and Benefits:
- Universal wide input voltage range 85…264 VAC;
- Ultra-thin design: width from 30 to 96 mm (depending on model);
- High efficiency 89-96% and low consumption without loading <1~3.6W (depending on the model);
- Built-in parallel power supply capability to increase overall power (XDR-480E/960E);
- Wide range of operating temperatures from -40 to +70 (power reduction at >+50);
- Protection against short circuit, overload, overvoltage, overheating;
- Meets OVC III standards;
- Work at altitudes up to 5000 m;
- Output voltage: 12V (except for the 960W model), 24V, 36V, 48V;
- Output voltage adjustment in the ranges: 12V (12...15V), 24V (24...29V), 36V (36...42V), 48V (48...55V);
- Certificate: CB/TUV/UL/RCM/BSMI/CCC/BIS/EAC/CE/UKCA (62368-1 + 61010-1 + 61558-1);
- Warranty: 3 years.

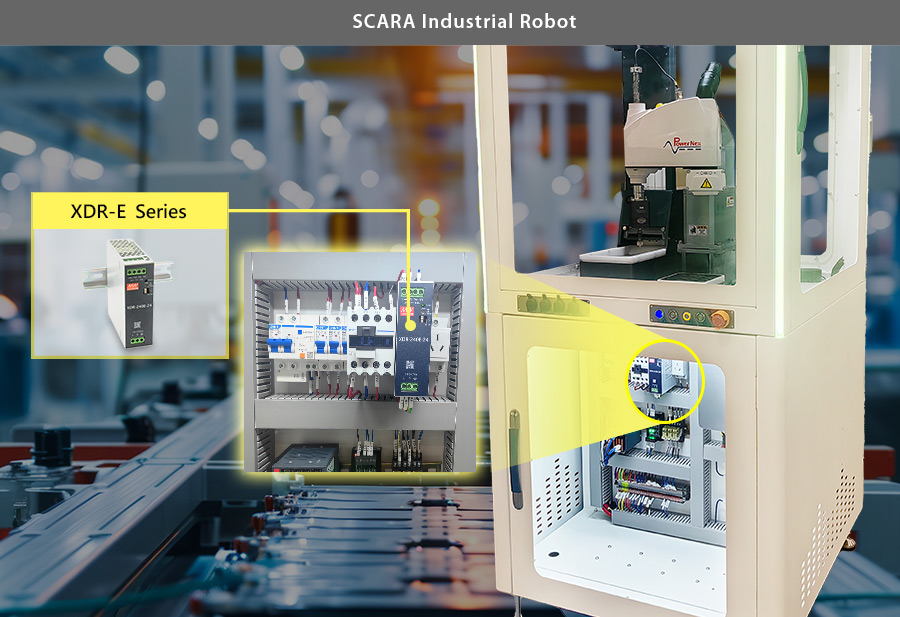

Example of use:

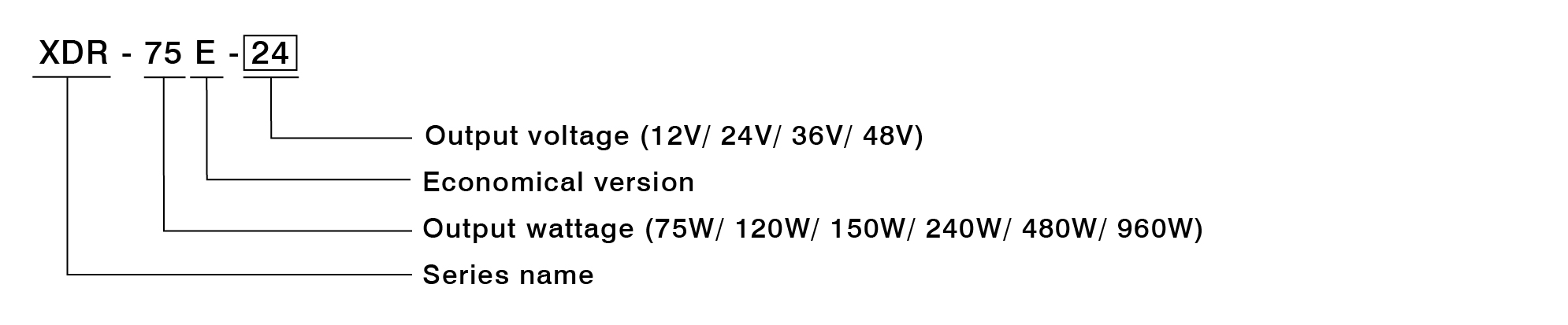

Model coding:
